Wireless Camera For Jeep Compass / Patriot / Liberty 2011~2015 / Rear view Camera / Back up Reverse Camera / HD CCD Night Vision

Car camera Specification:

1.Effective Pixls: 440.000 (720x540)

2.Power: DC 12V

3.View Angle: 170 degree

4.Image Sensor: CCD1/3

5.TV system: NTSC/PAL(If you need PAL system , please leave a message)

6.Horizontal Resolution: 520 TV lines

*Wireless 2.4GHz transmitter/receiver set (12-Volt for vehicle installation)

*Transmitter / Receiver Cable Length:1m

*Easy installation

*Take one minute get your camera become a wireless camera

*Work Range:Up to about 80m(Hollowness)

*Connects to rear-view camera and front video screen

*Fit all RCA composite video connections

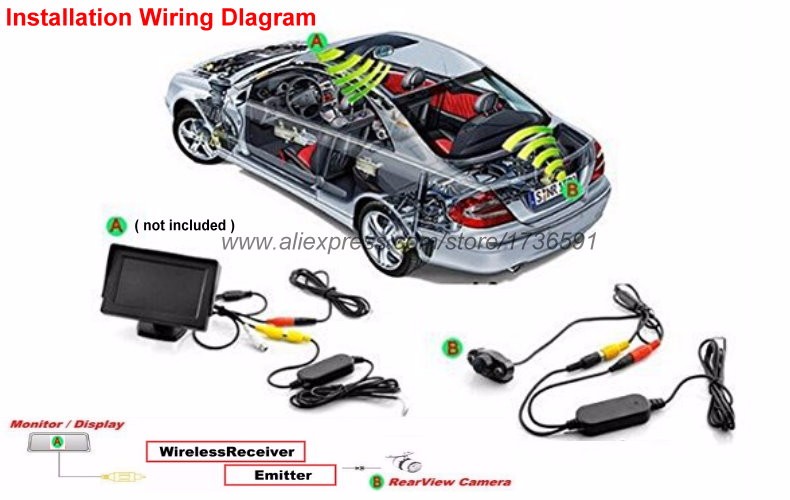

How to Install a Camera with the Wireless Module:

=> Take out your stock license plate light at the back of your car.

=> Fix the camera to where the stock license plate light was.

=> Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power

=> Connect the wireless module (transmitter) to your camera via the two cables - yellow plug for AV output , black plug for power

=> Connect the wireless module (transmitter) to the reverse light of your car to get the power - red wire for positive ,black wire for negative

=> Connect the wireless module (receiver) to your car monitor - yellow plug for AV input.

=> Connect the wireless module (receiver) to car battery or cigarette lighter to get the power - red wire for positive ,black wire for negative

=> You will see the images when your car is in reverse shift.
